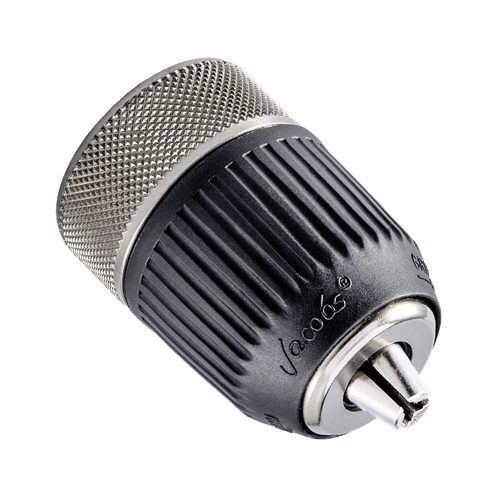

200 Classic Series Hand-Tite® DIY Keyless
Model Name:
210-1P
210-2P
213-1P
213-2P
213-2H
Classic Consumer Application
Features
Jacobs Hand-Tite® Technology
Quick and Easy chuck operation.
“Click” Technology (Optional)
Provides audible and tactile feedback when chuck is properly tightening.
"Hammer" Technology (Optional)
A positive locking mechanism which prevents loosening in hammer drill application.
Flexible Options
Fit different design requirements of consumer drills.
Specification
| Model | PN | Sleeve | Capacity(in) | Capacity (mm) | Mount | L (in/mm) | Dia (in/mm) | Feature |
|---|---|---|---|---|---|---|---|---|
| 210-2P | JCM32338P | 2 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 2.181"/55.4mm | 1.681"/42.7mm | Individual Plastic Bagged |
| 210-1P | *33526 | 1 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 1.88"/47.8mm | 1.56"/40.0mm | Compact |
| 210-2P | *32541 | 2 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 2.18"/55.4mm | 1.79"/45.6mm | Click |
| 210-2P | *33265 | 2 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 2.29"/58.2mm | 1.63"/41.4mm | Hammer(Hex Head) |
| 213-1P | *33545 | 1 Plastic | 1/16"-1/2" | 1.5-13.0mm | 1/2-20 UNF | 2.23"/56.7mm | 1.68"/42.7mm | Hammer |
| 213-2P | *32361 | 2 Plastic | 1/16"-1/2" | 1.5-13.0mm | 1/2-20 UNF | 2.47"/62.7mm | 1.68"/42.7mm | Hammer |
| 213-2P | *33267 | 2 Plastic | 1/16"-1/2" | 1.5-13.0mm | 3/8-24 UNF | 2.58"/65.6mm | 1.68"/42.7mm | Hammer(Hex Head) |
| 213-2H | *33444 | Plastic+Metal | 1/16"-1/2" | 1.5-13.0mm | 3/8-24 UNF | 2.47"/62.7mm | 1.68"/42.7mm | Hammer |
| * OEM market | ||||||||
Note: Products pictures reference only, please prevail in kind.
