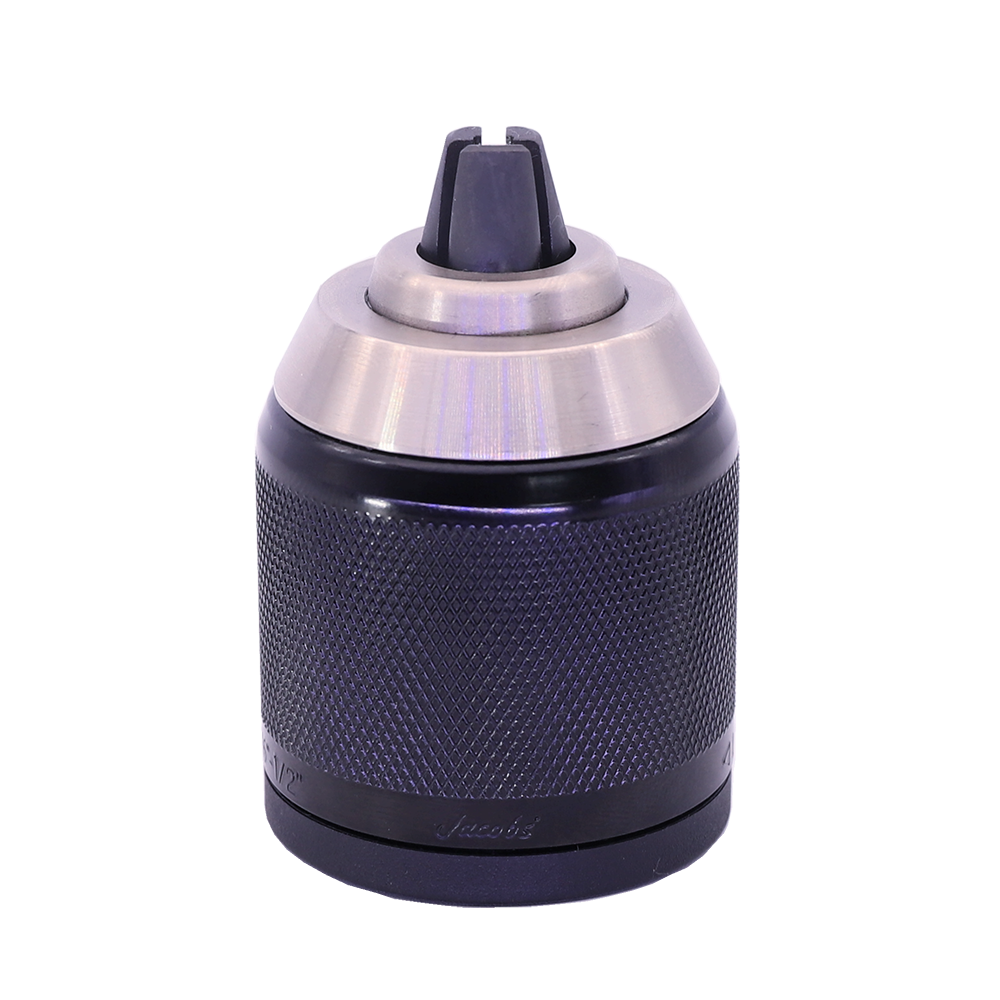

8000 Series Ultra Locking System
Model Name:
8513-1M
8713-1M
For Use On All Types Of Portable DC Drills (Hammer, High Speed & Torque). Designed For Heavy Duty Applications.
Features
Ultra Locking System Inside
Jacobs Patented, Robust and Durable Locking Design that provides superior Performance.
“Click” Technology
Provides audible and tactile feedback when chuck is properly tightening.
“Anti-Lock” Technology
Prevents chuck from locking open at max. capacity.
Compact Design
Perfectly matching portable tools’ compact design.
Heavy Duty Application
For use on all types of portable DC drills. Especially design for Heavy Duty applications
Specification
| Model | PN | Sleeve | Jaw | Capacity(in) | Capacity (mm) | Mount | L (in/mm) | Dia (in/mm) | Package |
|---|---|---|---|---|---|---|---|---|---|
| 8513-1M | 34246 | 1 Metal | Steel | 1/16"-1/2" | 1.5-13mm | 1/2-20 UNF | 2.13"/54mm | 1.69"/42.9mm | Bulk |
| 8713-1M | 34247 | 1 Metal | Carbide | 1/16"-1/2" | 1.5-13mm | 1/2-20 UNF | 2.13"/54mm | 1.69"/42.9mm | Bulk |
Note: Products pictures reference only, please prevail in kind.
