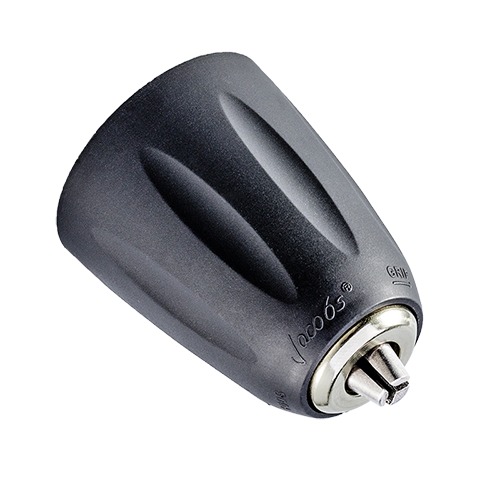

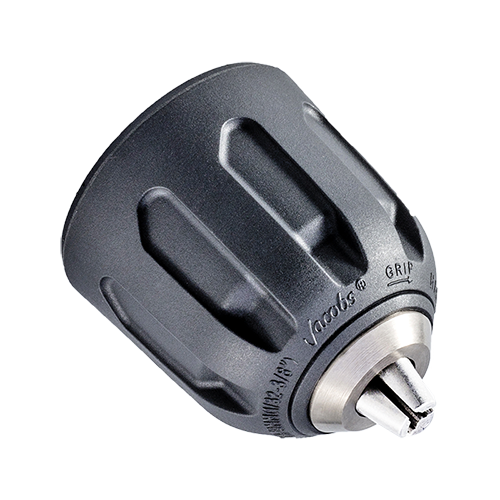

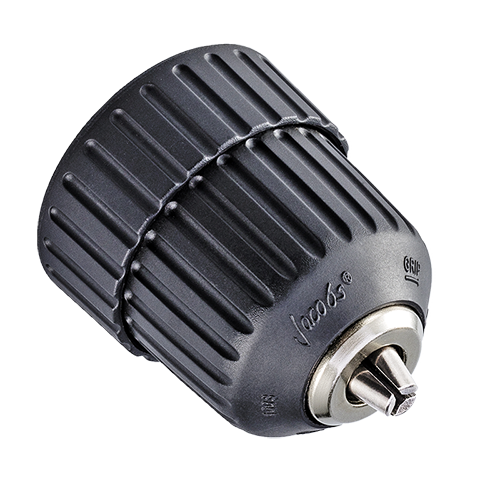

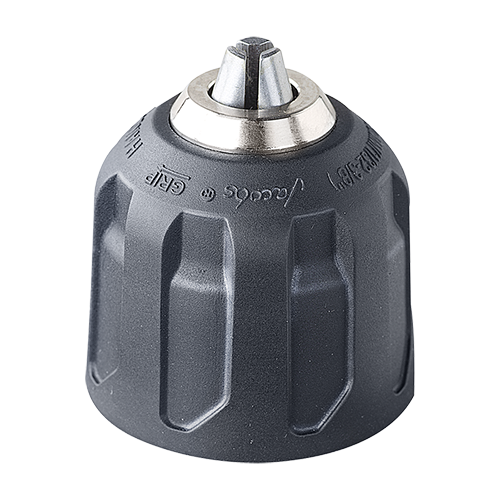

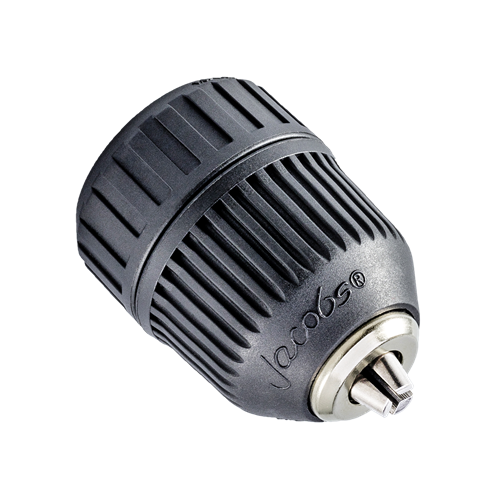

100/1000 Series Hand-Tite® DIY Keyless
Model Name:
1010-1P
100-1P
100-2P
Recommend For Consumer Cordless Drill Driver.
3/8" (10mm) Chuck Capacity
Features
Jacobs Hand-Tite® Technology
Quick and Easy chuck operation.
Compact Design
Shortening chuck length to match compact drill design.
"Hammer" Technology Optional (1000 Series)
A positive locking mechanism which prevents loosening in hammer drill application.
Specification
| Model | PN | Sleeve | Capacity(in) | Capacity (mm) | Mount | L (in/mm) | Dia (in/mm) | Package |
|---|---|---|---|---|---|---|---|---|
| 1010-1P | *33588 | 1 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 1.932"/49.0mm | 1.690"/42.9mm | Bulk |
| 100-1P | *33708 | 1 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 1.597"/40.5mm | 1.614"/41.0mm | Bulk |
| 100-1P | *33345 | 1 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 2.126"/54.0mm | 1.673"/42.5mm | Bulk |
| 100-2P | *33344 | 2 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 2.126"/54.0mm | 1.831"/46.5mm | Bulk |
| 100-2P | *33372 | 2 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 2.146"/54.5mm | 1.693"/43.0mm | Bulk |
| 100-2P | *33373 | 2 Plastic | 0.04"-3/8" | 1.0-10.0mm | 3/8-24 UNF | 2.146"/54.5mm | 1.629"/41.4mm | Bulk |
| * OEM Market | ||||||||
Note: Products pictures reference only, please prevail in kind.
