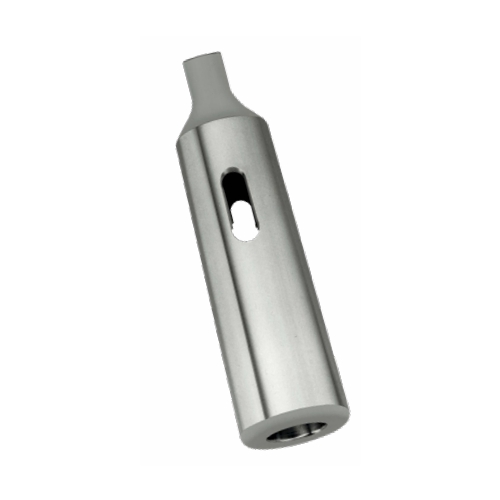

Archer® Series 600 Drill Sleeve- Morse Taper
Model Name:
Archer 600
Archer Precision Machine Tool Accessories For Maximum Flexibility In Tooling Setups.
Features
Adapt smaller Morse taper shank tools to larger machine spindles.
Oil toughened and externally precision ground with hardened tang.
Outside Morse taper sizes are 1 through 6; inside Morse taper sizes are 0 through 5.
Specification
| Model | PN | Morse Taper No.(Outside-Inside) | Length(in/mm) |
|---|---|---|---|
| 621 | 30422DN | 2 - 1 | 3.620"/92mm |
| 632 | 30423DN | 3 - 2 | 4.380"/111mm |
| 631 | 30424N | 3 - 1 | 3.880"/99mm |
| 643 | 30425DN | 4 - 3 | 5.500"/140mm |
| 642 | 30426DN | 4 - 2 | 4.880"/124mm |
| 641 | 30427DN | 4 - 1 | 4.880"/124mm |
| 654 | 30428DN | 5 - 4 | 6.690"/170mm |
| 653 | 30429DN | 5 - 3 | 6.120"/155mm |
| 652 | 30430DN | 5 - 2 | 6.120"/155mm |
| 664 / 665 | 30639N / 30431DN | 6 - 4 / 6 - 5 | 8.560"/217mm |
Note: Products pictures reference only, please prevail in kind.
