Archer® Series 800 Extension Sockets- Morse Taper
Model Name:
Archer 800
Archer Precision Machine Tool Accessories For Maximum Flexibility In Tooling Setups.
Features

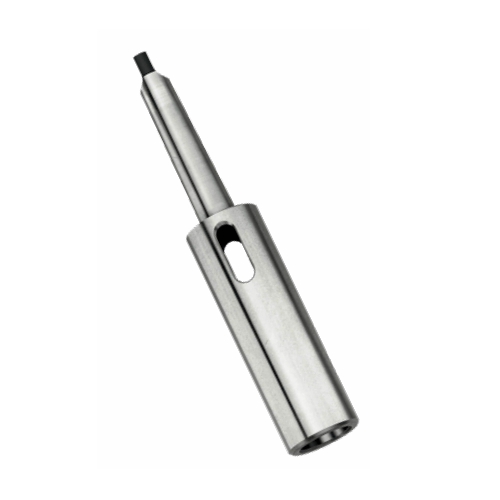

Extend tool lengths and application distances while adapting for increases or decreases in applied tool Morse taper sizes.
Externally precision ground with hardened tang.
Outside and inside Morse taper sizes are 1 through 5.
Specification

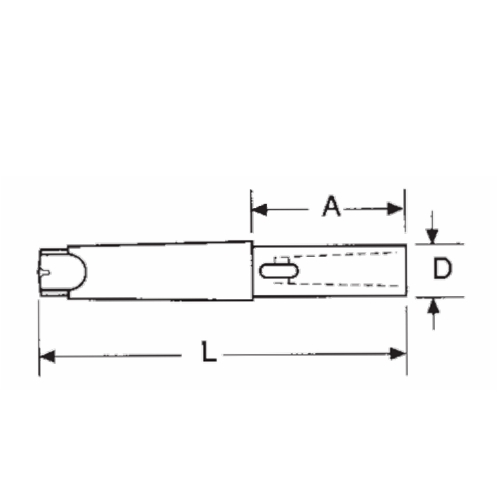

| Model | PN | Morse Taper No.(Outside-Inside) | L- Length(in/mm) | A- Socket Length(in/mm) | D- Dia(in/mm) |
|---|---|---|---|---|---|
| 822 | 30446N | 2 - 2 | 6.89"/175mm | 3.58"/91mm | 1.18"/30mm |
| 823 | 30447DN | 2 - 3 | 7.72"/196mm | 4.41"/112mm | 1.42"/36mm |
| 832 | 30449DN | 3 - 2 | 7.64"/194mm | 3.58"/91mm | 1.18"/30mm |
| 833 | 30450DN | 3 - 3 | 8.46"/215mm | 4.41"/112mm | 1.42"/36mm |
| 834 | 30451DN | 3 - 4 | 9.45"/240mm | 5.39"/137mm | 1.89"/48mm |
| 843 | 30452N | 4 - 3 | 9.45"/240mm | 4.41"/112mm | 1.42"/36mm |
| 844 | 30453DN | 4 - 4 | 10.43"/265mm | 5.39"/137mm | 1.89"/48mm |
| 845 | 30454N | 4 - 5 | 11.81"/300mm | 6.77"/172mm | 2.48"/63mm |
| 854 | 30455DN | 5 - 4 | 11.81"/300mm | 5.39"/137mm | 1.89"/48mm |
| 855 | 30456N | 5 - 5 | 13.19"/335mm | 6.77"/172mm | 2.48"/63mm |
Note: Products pictures reference only, please prevail in kind.
