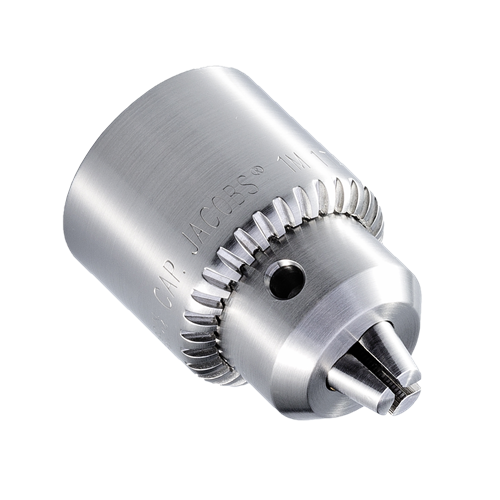

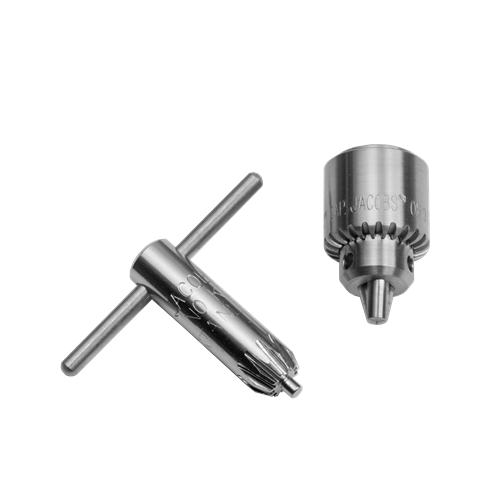

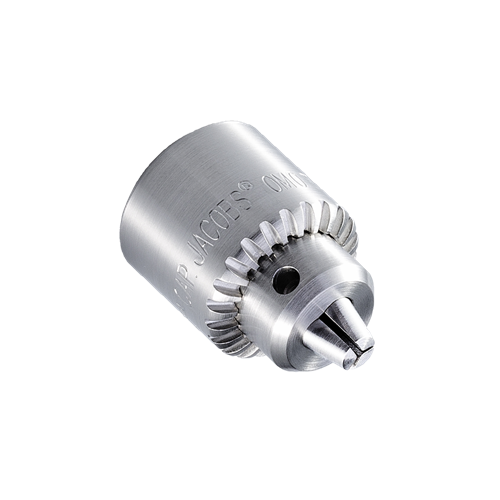

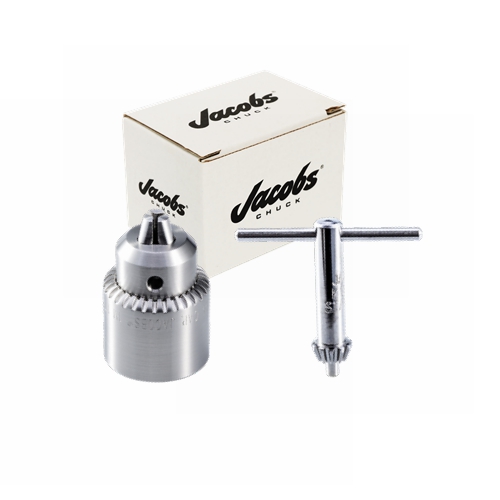

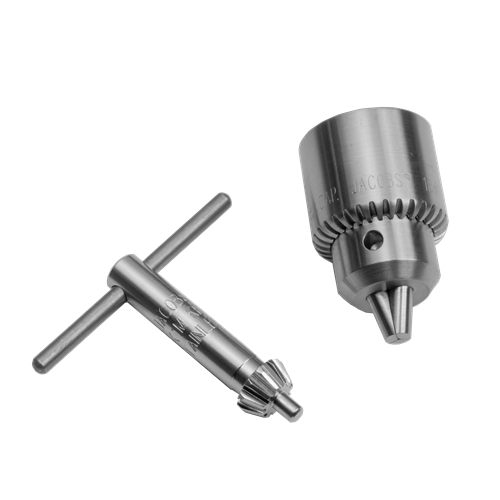

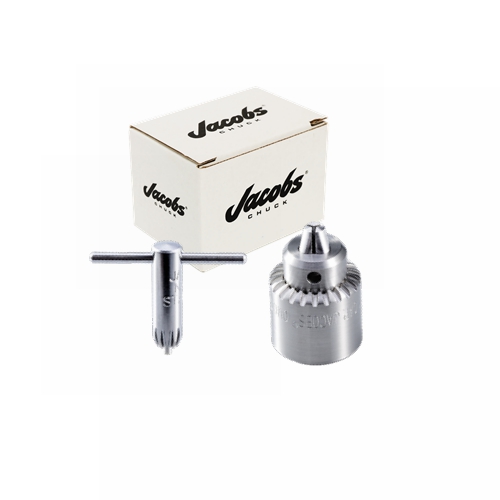

Medical Stainless Steel Keyed Chuck
Model Name:
0M
1M
Jacobs Stainless Steel Chuck Is Widely Used In Medical Portable Tool.
Features
Good Anti-Corrosion Performance - All components of SS Chuck Are Made From Stainless Steel.
Good Anti-Rust Performance- Specific Surface Treatment With Multiprocessing Ensures A Excellent Rust Protection In Medical Or Corrosive Environments.
Spark Prevention- Stainless Steel Can Reduce This Potential Risk In Special Environment.
Precision- T.I.R. 0.007".
Specification
| Model | PN(C&K) | PN(Chuck) | Capacity(in) | Capacity (mm) | Mount | Key | L (in/mm) | Dia (in/mm) | Package |
|---|---|---|---|---|---|---|---|---|---|
| 0M | JCM6624Z | - | 0.028"-0.156" | 0.7-4.0mm | 0JT | K0M | 1.100"/27.9mm | 0.850"/21.6mm | Boxed |
| 0BM 5/16 | JCM6625Z | JCM6602Z | 0.028"-0.156" | 0.7-4.0mm | 5/16-24 UNF | K0M | 1.170"/29.7mm | 0.850"/21.6mm | Boxed |
| 1M | JCM6626Z | JCM6611Z | 0.028"-0.250" | 0.7-6.5mm | 1JT | K1M | 1.571"/39.9mm | 1.118"/28.4mm | Boxed |
| 1BM 5/16 | JCM6627Z | - | 0.028"-0.250" | 0.7-6.5mm | 5/16-24 UNF | K1M | 1.571"/39.9mm | 1.118"/28.4mm | Boxed |
| 1BM 3/8 | JCM6628Z | JCM6613Z | 0.028"-0.250" | 0.7-6.5mm | 3/8-24 UNF | K1M | 1.571"/39.9mm | 1.118"/28.4mm | Boxed |
| 1M (Asia) | - | JCM34244 | 0.031"-0.311" | 0.8-7.9mm | 1JT | K1M | 1.571"/39.9mm | 1.118"/28.4mm | Boxed |
| 1M (Asia) | JCM33619 | JCM33602 | 0.039"-0.319" | 1.0-8.1mm | 1JT | K1M | 1.571"/39.9mm | 1.118"/28.4mm | Boxed |
Note: Products pictures reference only, please prevail in kind.
