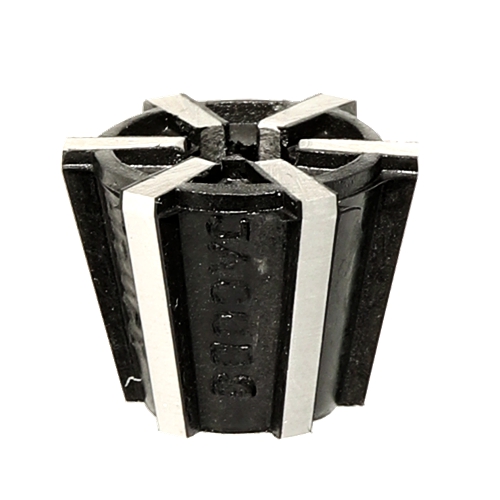

Die Grinder Collet

Model Name: J116 J117

Jacobs® Rubber-Flex Collets Outperform Conventional Split-steel Collets In Gripping Power, Accuracy And Durability.

Features
  • Parallel Jaw Insert Surfaces Exert Uniform, Accurate Gripping Force Up to Three Times Greater Than Can Be Achieved with Split-Steel Collets.

  • Each Collet Accepts and Precisely Centers a Wide Range of Both Decimal or Metric Diameters (Within Individual Capacity Ranges) to Speed Setups and Increase Machining Productivity.

  • Durable One-Piece Construction. Synthetic Rubber Retains Flexibility and Resists Deterioration From Heat, Coolants and Cutting Compounds.

  • Steel Jaw Inserts Precision Ground After Molding Process to Ensure Maximum Gripping Accuracy. Hardened for Greater Wear Resistance Than Split Steel Collets.

  • Each Collet Bore is Held Concentric to the O.D. Tapers, Front and Back, to Minimize T.I.R.

  • Automatically Seals Tool O.D. to Prevent Coolant Flow Through Thus Increasing Tool Wear.

  • Seals Collets and Machine Spindles to Protect From Abrasive Particles and Swarf.

Specification

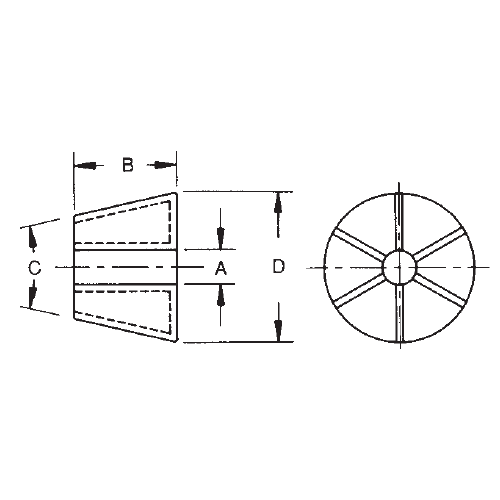

Model PN A- Cap.(in) A- Cap.(mm) B- Length(in/mm) C- Angle D- Dia(in/mm) No.of Inserts
J116 B31069 0.100"-0.177" 2.4-4.5mm 0.468"/11.9mm 26° 0.590"/15.1mm 6
J117 B31070 0.177"-0.256" 4.5-6.5mm 0.468"/11.9mm/ 26° 0.590"/15.1mm 8
More>>

Note: Products pictures reference only, please prevail in kind.
