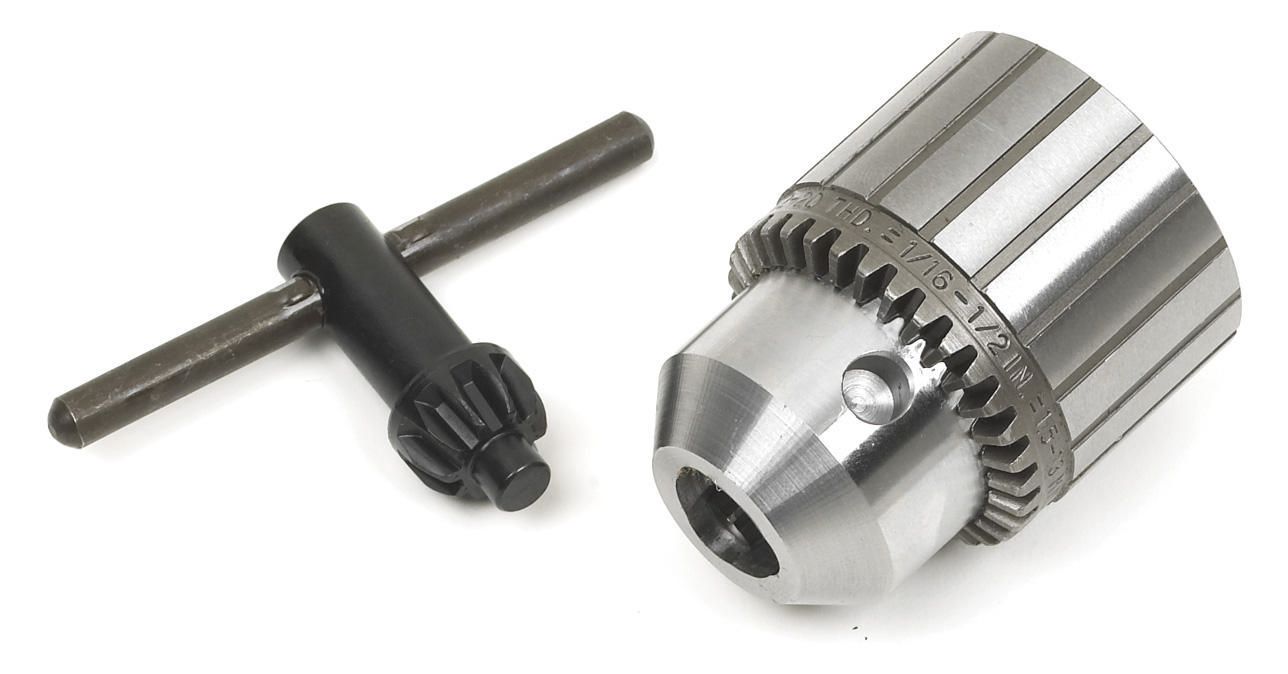

PB Light Duty Keyed - 20 Series 1/2in(13mm) Chuck
Model Name:
24BA 3/8
26BA 1/2
Plain Bearing Design, Particular Size Design For Portable Tools, Widely Applied To Portable Drill.
1/2in (13mm) Capacity, JACOBS KK Key.
Features
Light Duty Design- Portable Tool Fit Size
Jaws Center-Grind for Straightness and Alignment.
Each Chuck 100% Inspected For Performance And Precision.
Chuck Capacity : 1/16"- 1/2" (1.5-13mm)
Key Type : JACOBS KK
Mount size : Thread
Specification
| Model | PN(C&K) | PN(Chuck) | Mount | L (in) | Dia (in) | Package |
|---|---|---|---|---|---|---|
| 24BA 3/8 | 14946 | - | 3/8-24 UNF | 2.304 | 1.680 | Boxed |
| 26BA 1/2 | 14947 | JCM13593 | 1/2-20 UNF | 2.304 | 1.715 | Boxed |
| 26BA 1/2 | - | - | 1/2-20 UNF | 2.304 | 1.715 | - |
| 26BA 1/2 | 31052D | - | 1/2-20 UNF | 2.304 | 1.715 | Clamshell |
Note: Products pictures reference only, please prevail in kind.
